Equinix LA4 Data Center

Equinix

Equinix LA4 Data Center

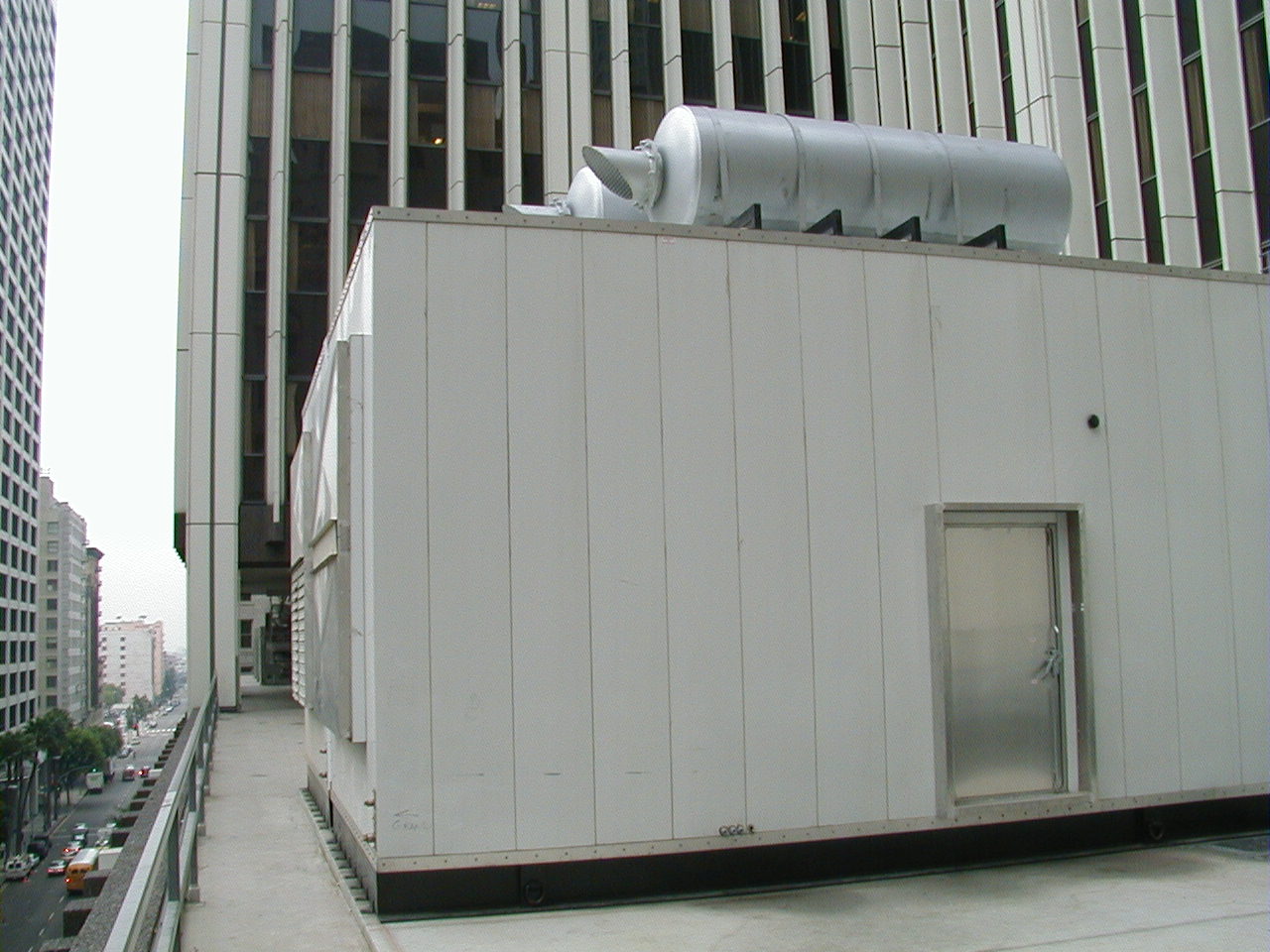

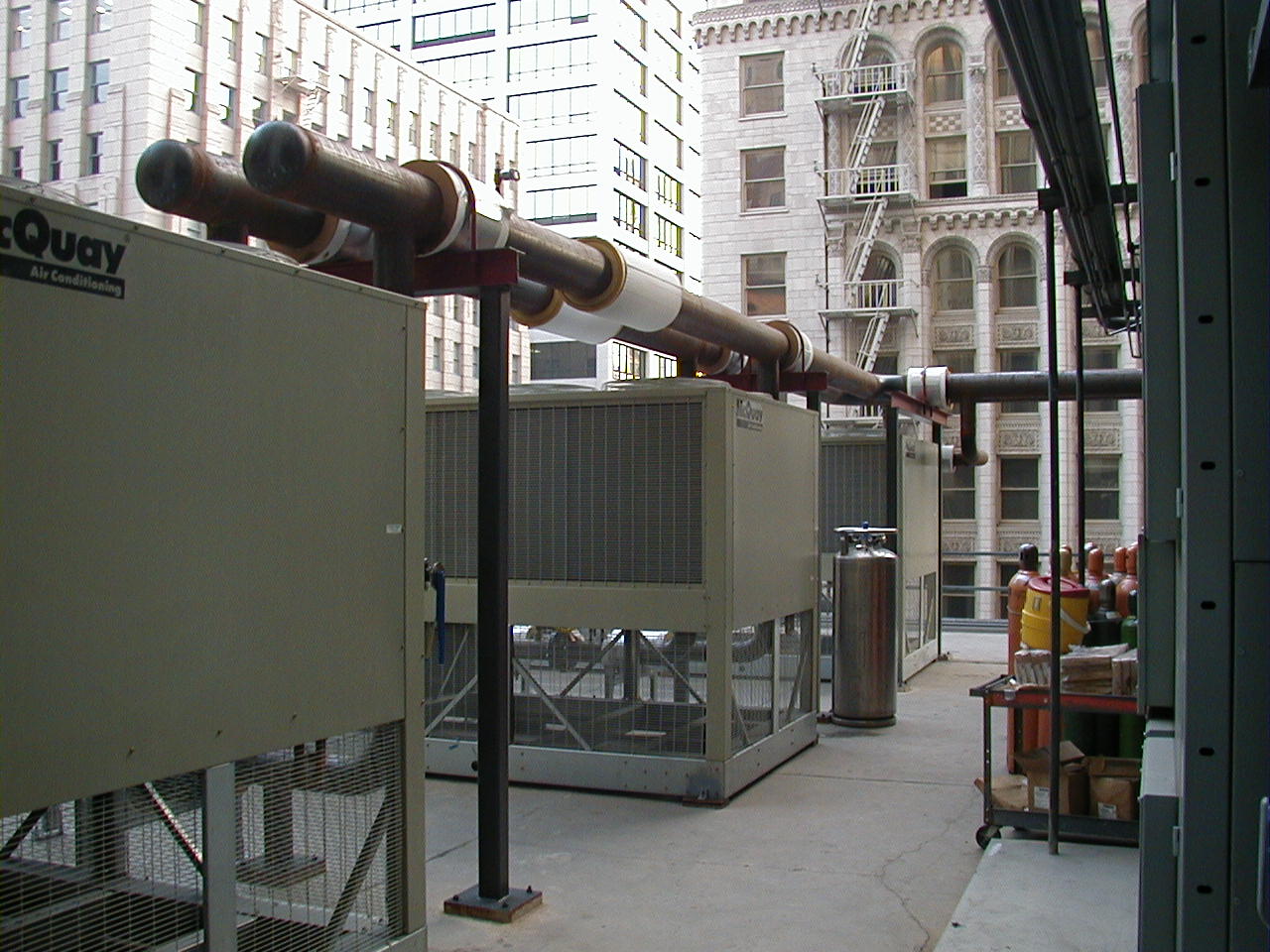

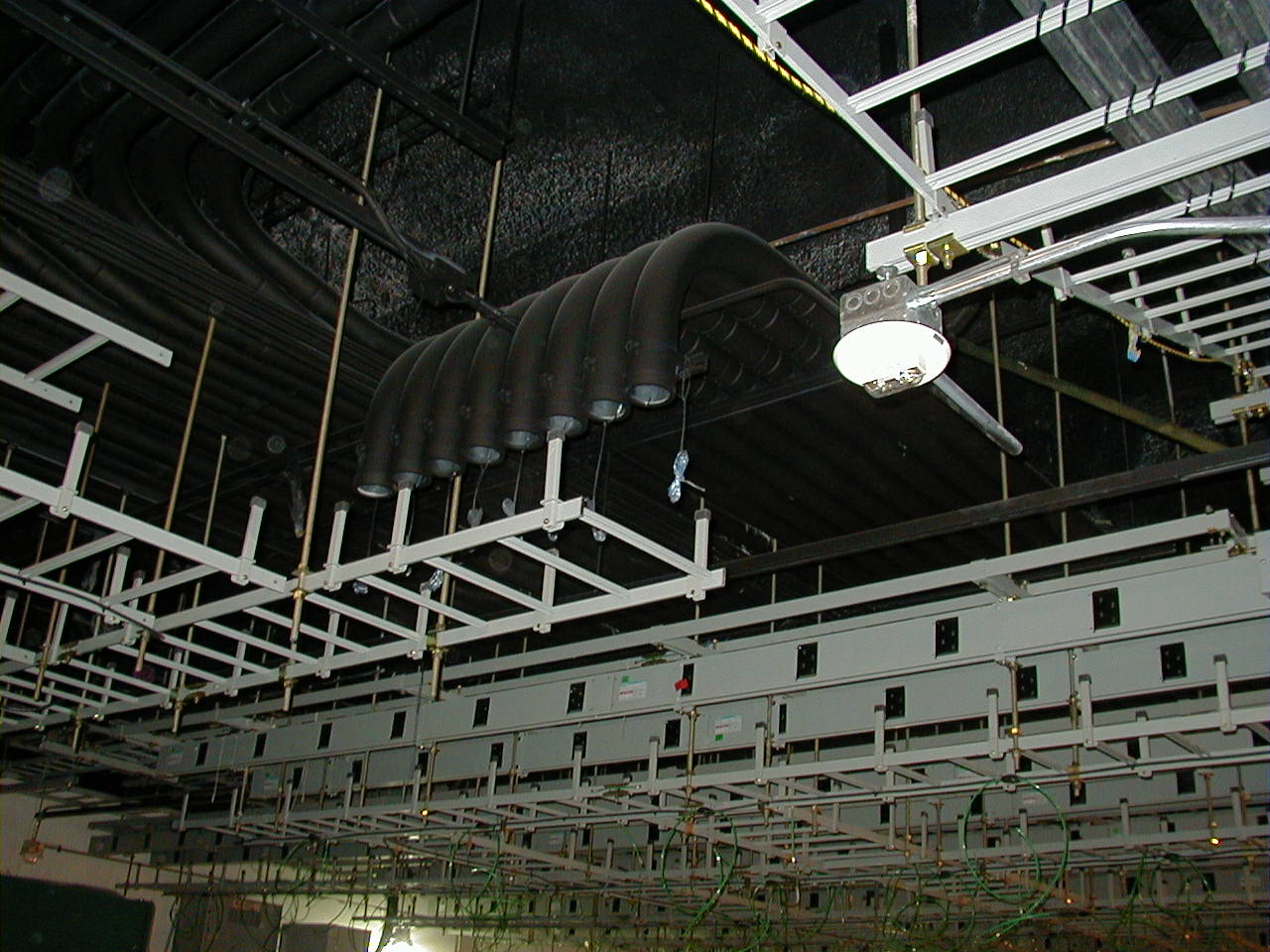

Gordon Prill, Inc. was contracted to design a 32,730 SF data center within an existing 700,000 SF multi-story facility. The data center was cooled by 21 CRAC units at 18,000 CFM/unit, 3 chillers at 256 tons/unit. The data center design was based on hot aisle/cold aisle engineering. 3 1750KW diesel generators were installed for emergency power along with 2 8,000-gallon diesel tanks. Supporting switchgear, substation, panels and 3 500 KVA UPSs were installed.

Industry:

Datacenters

Size:

32,730 sq ft

Services:

Architecture and MEP Engineering
